Professional Pneumatic Vacuum Valve CF Flange Welded Bellow Sealed

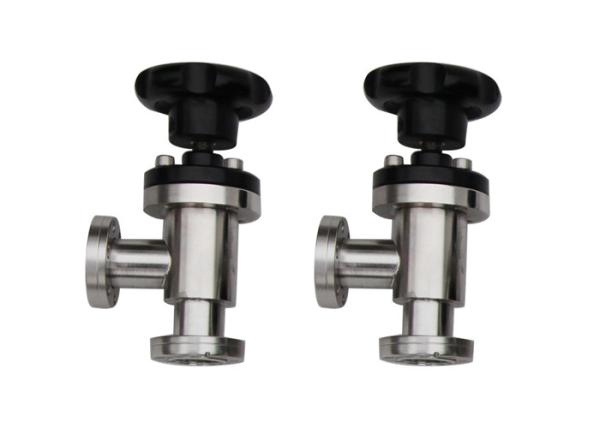

Angle Valve , Manual , CD-Jb16C , CF Flange , welded bellow sealed

Model CD-J ultrahigh vacuum manual is used to cut-in or cut off the gas flow in the system. Manual valve is controlled by manually turning the handle to achieve the opening and closing of the valve. With the advantages: module design, compact structure, light weight, less mechanical wear, long service life, reliable seal(shaft seal of welded bellow), Small leakage ( internal welded Stainless steel Chamber),this model of valve is available for air or non-corrosive gases.

Features:

Module design, Compact structure, light weight

Small leakage (Internal welded stainless steel chamber)

Less mechanical wear, Long service life

Reliable seal (Shaft seal of welded bellow)

Main Materials:

Main specifications:

1. Application:1×10⁵ Pa ～ 1.3×10^-7 Pa;
2. Leak rate:≤1.3×10^-10 Pa.m³/s;
3. Working media:Air, Vapor, Non-corrosive gases
4. Baking temperature:

• ( On):≤200℃；
• (Off):≤150℃；

1. Air compression:0.4 ～ 0.7MPa；

1. Power supply:AC220V 50Hz,6W or or DC24V,3W(optional)；
2. Mounting position:Any
